Transfers
A payment's journey from opened to settled, and every status along the way.
A transfer is one payment of a quote. It has its own pay-in address, the address of its Kite contract, and moves through statuses as the payment progresses. Each change is recorded on its timeline and sent to your webhooks.
Statuses
| Status | Meaning |
|---|---|
Created | Being set up. Rarely seen. |
AwaitingDeposit | Open, waiting for the customer to pay. |
DepositReceived | The full amount arrived at the pay-in address. |
x402Settled | An x402 payment was accepted and the funds are at the pay-in address. |
Processing | The settlement transaction was sent. |
Settled | Paid. Swapped if needed, fees paid, and the rest sent to the settlement address. |
Cancelled | Expired without payment. |
Failed | Settlement couldn't complete. The funds are refunded automatically, unless the payment came through x402 (see below). |
Refunded | The funds went back to the refund address. |
Settled is the only status that means you've been paid. Fulfil orders on it.
The timeline

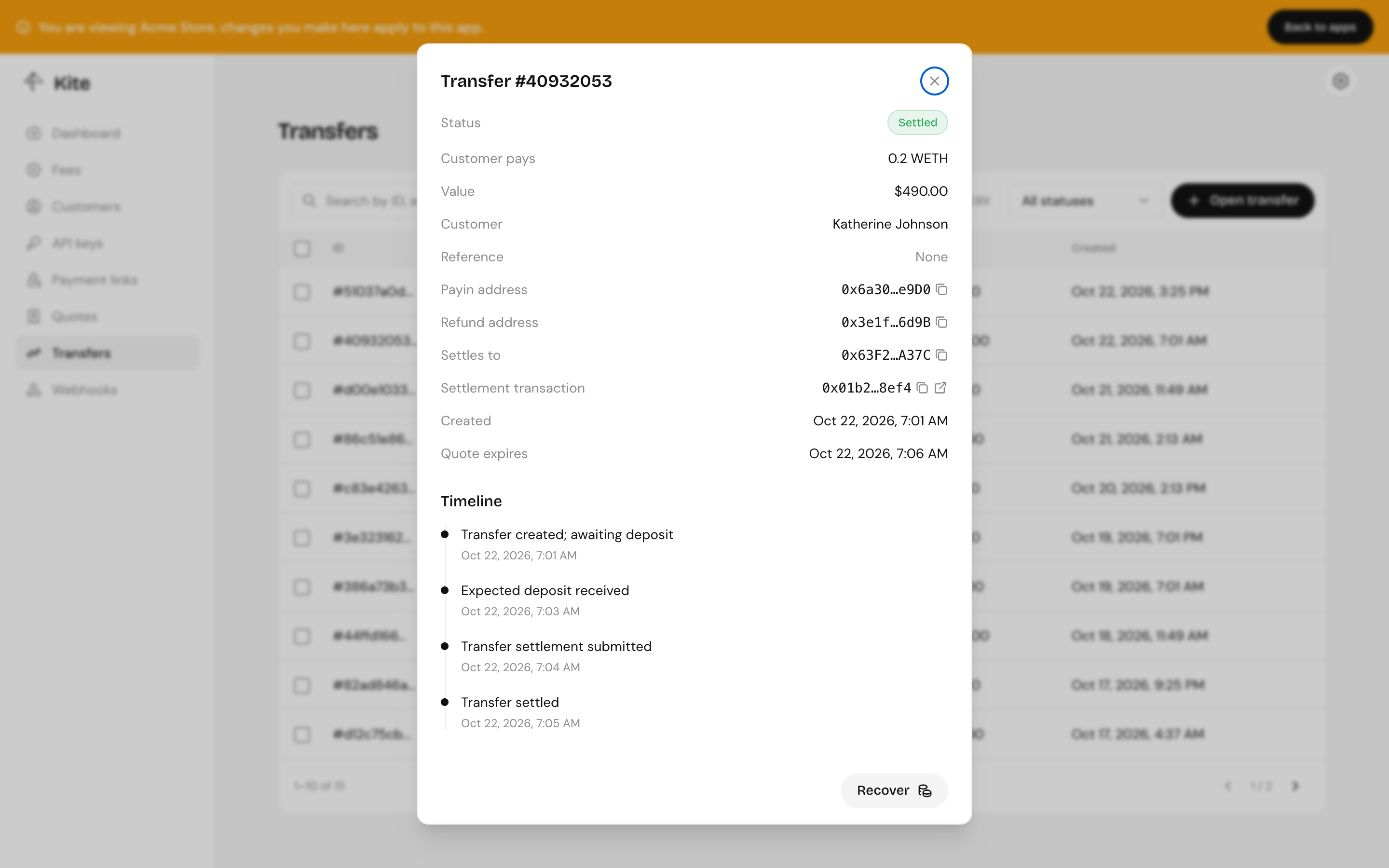

Open a transfer to see its details and every step it went through, with links to the transactions.
Late and partial payments
- Less than the amount: the transfer waits until the quote expires, then the funds are refunded.
- More than the amount: the payment settles and the excess goes back to the customer.
- After the transfer was cancelled: the funds are refunded.
- A different token than quoted: it's sent back to the refund address automatically. See Refunds and recovery.
Opening transfers yourself
Checkout opens transfers for you. Through the API, a transfer is opened for a quote:
const { data: quote } = await kite.quotes.create({
body: { chainId, sourceTokenAddress, amount: "49000000" },
});
const { data: transfer } = await kite.transfers.create({
body: { quoteId: quote.id, refundAddress: customerWallet },
});
transfer.paymentInstructions;
// { caip2Id, address, tokenAddress, amount, expiresAt }amount is what the customer pays, in the smallest unit of sourceTokenAddress (49000000 is 49 USDC, which has 6 decimals). A quote can only be used once.
